PUPVWMHB LiFePO4 Battery — 12V 100Ah, 300Ah Mini & More

The fastest way to find the right model is to start with your system voltage, then narrow by capacity and environment. PUPVWMHB runs six voltage configurations — 12V, 24V, 36V, 48V golf cart, 48V server rack, and 72V — and each is built for a different application. Picking the wrong voltage isn't just inefficient; it won't work at all.

Running a 12V System

Most RV, van, and marine builds run 12V. The question isn't whether to go 12V — it's which 12V model fits your tray and your environment.

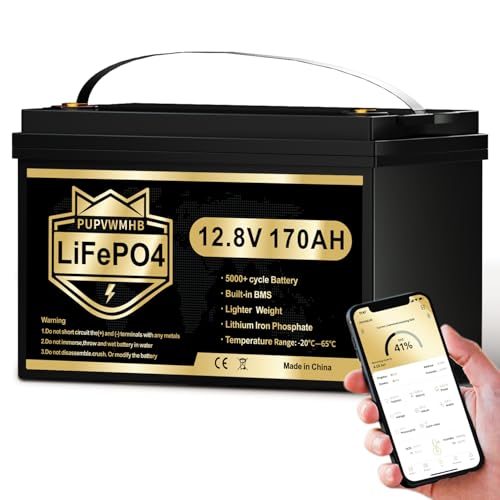

• Weight-sensitive build (motorhome, small boat, truck camper): The 12V 170Ah Compact (B0DWL4Q5BD) weighs 32 lbs and measures 12.83×6.81×8.46 inches — significantly smaller than every other model in the lineup. You give up capacity, but the 150A BMS and 4S/4P support still let you scale up later.

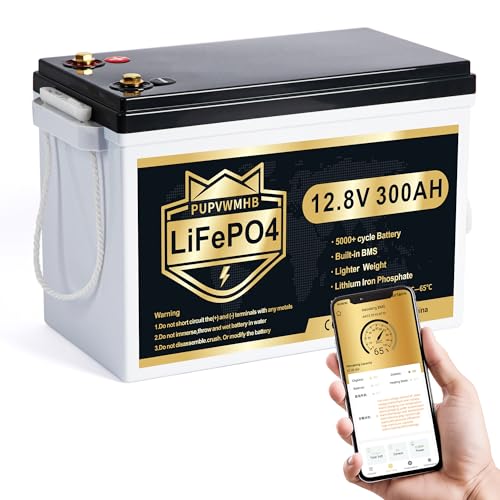

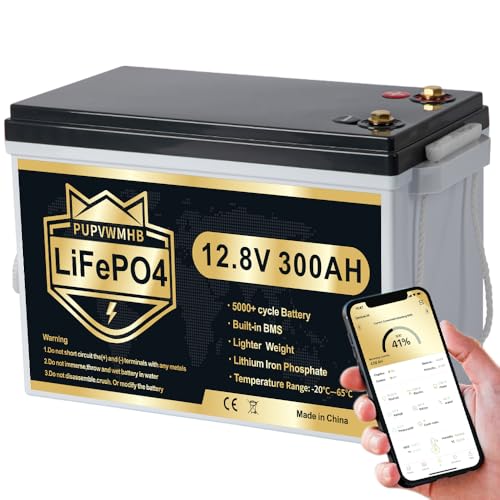

• Standard RV or van conversion: The 12V 300Ah Bluetooth (B0DL9MNRDN) is the most-reviewed product in the lineup — 231 ratings — and the one community members on r/RVLiving have reported testing at 312–314Ah actual output. It's the anchor option.
• Need IP65 and standard capacity: The 12V 300Ah MINI IP65 (B0GWD32D8Z) is the weather-resistant version of the same 300Ah spec, with 300A max continuous and 600A peak discharge over 3–5 seconds.
• Marine install where submersion is a real risk: The 12V 300Ah IP67 Marine (B0F376XX6K) carries an IP67 rating — one step above IP65, meaning it handles brief submersion, not just water spray.

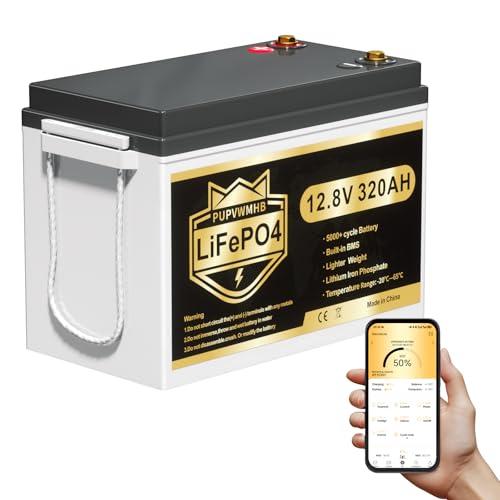

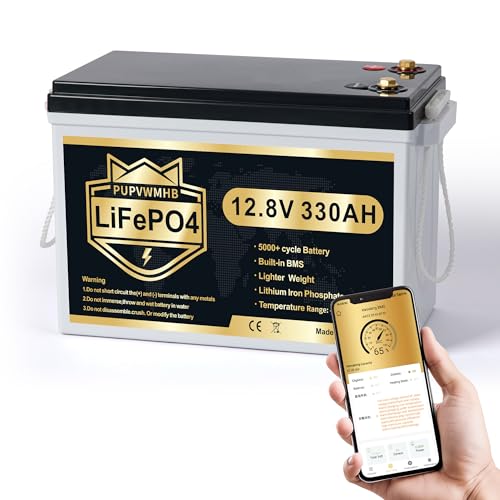

• Need more capacity in the same footprint: The 12V 320Ah IP65 (B0FFSJ73VN) and 12V 330Ah MINI IP65 (B0GWD7J74J) both share the 13.58×7.48×9.64-inch case with the 300Ah units. Same tray, more amp-hours, IP65 protection.

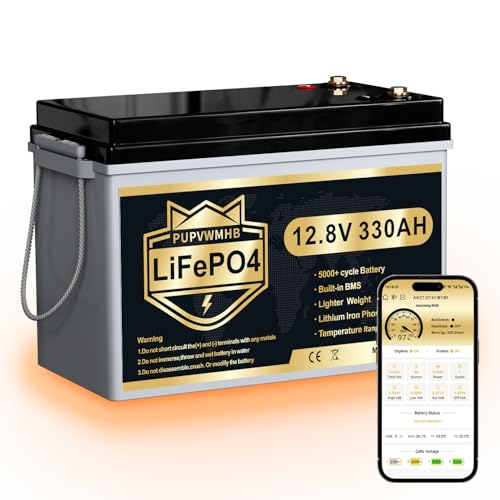

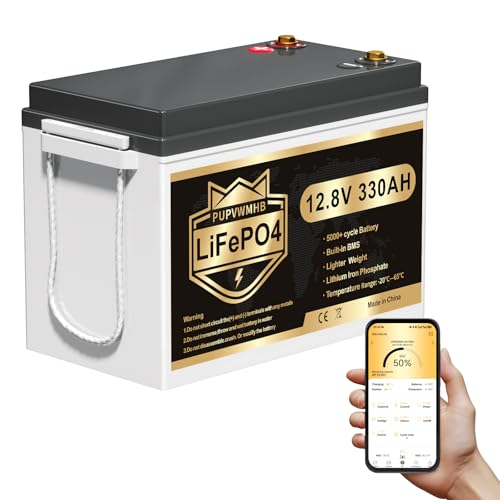

• Winter RVer or charging in sub-freezing temps: The 12V 330Ah Self-Heating (B0FY5BZCRX) is the only model in the lineup with automatic self-heating. It activates when connected to a charger between -4°F and 32°F, stops at 37.4°F, and requires a charging current above 7A to trigger. No other model handles this — the standard units simply stop accepting charge below 32°F.

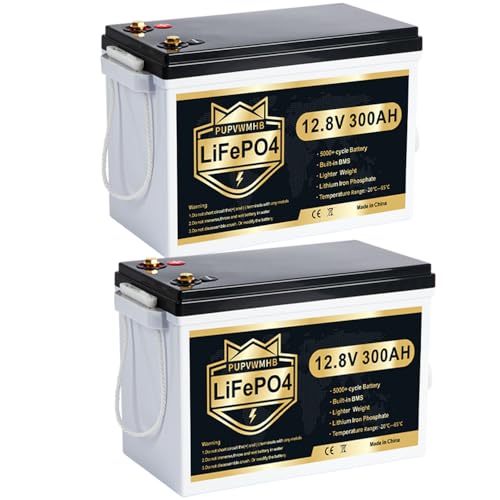

• Building a large solar bank from day one: The 12V 300Ah 2-Pack (B0FY5ZS4X3) delivers 7,680Wh out of the box and expands to 61.44kWh at max 4S4P configuration.

Running a 24V System

One 24V 100Ah battery replaces two 12V 100Ah batteries in series — same voltage, no balancing wires, fewer connections to fail. It's the cleaner choice for anyone upgrading a dual-12V setup.

• Fixed solar or marine install, weather-exposed: The 24V 100Ah Solar/Marine (B0GWD7X7QD) has IP65 and charges in 5 hours with a 29.2V 20A charger. Note the 3.0 rating — only 6 reviews, so treat it as early-data rather than a settled track record.

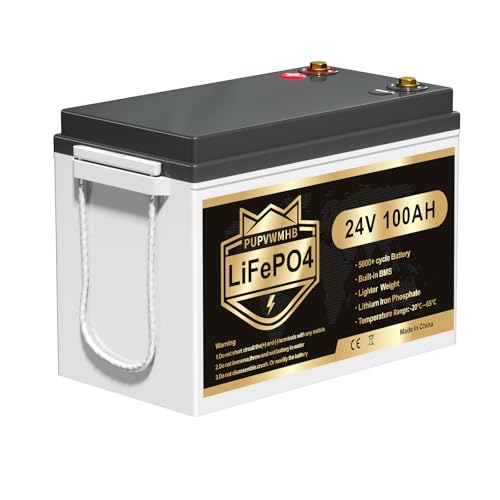

• Trolling motor, camper van, or any high-inrush load: The 24V 100Ah MINI Trolling (B0F8BFRW26) is specifically built for motor startup surge. It handles 300A for 1 second and auto-recovers from overload in 30 seconds — features the other 24V models don't have. If you're running a 70–80 lb thrust trolling motor, this is the right unit.
• Compact daily-cycling solar or off-grid: The 24V 100Ah Compact (B0F379ZBKP) is 41% smaller by volume than a standard 24V 100Ah battery and rated for 5,000 cycles at 100% DOD. Good fit for systems that discharge fully every day.

Replacing Golf Cart Batteries

Golf cart buyers have one job: match the system voltage. Put a 48V battery in a 36V cart and you'll fry the controller. Every PUPVWMHB golf cart kit includes a charger and an LCD touch monitor — you're not buying a bare cell.

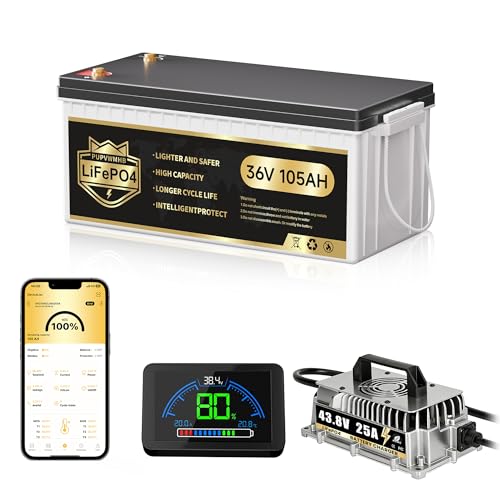

• 36V cart (EZGO, Club Car, Yamaha 36V): The 36V 105Ah Golf Cart Kit (B0GS1KGQX5) — 4,032Wh, 200A BMS, 43.8V 25A charger, 50-mile range estimate with a 3kW motor. Comes in black or white (shipped randomly).

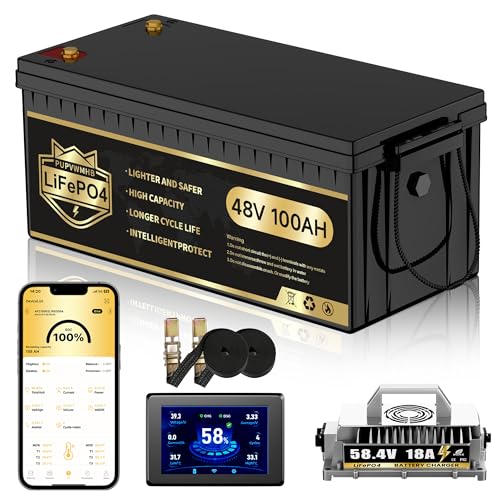

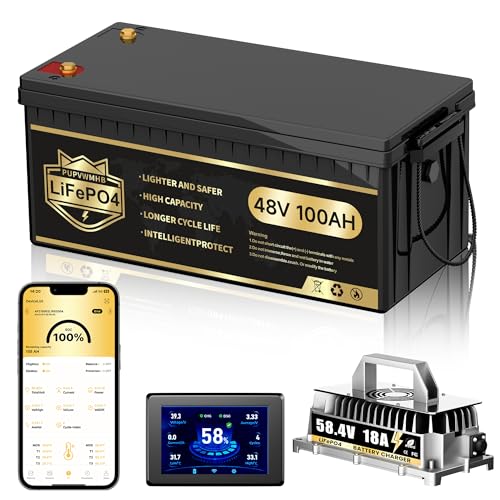

• 48V cart, standard use: Either 48V 100Ah option. The 48V 100Ah Golf Cart Kit (B0GWMC876T) and the 48V 100Ah Golf Cart 8000-Cycle (B0FPM37XXD) share identical specs — same BMS, same charger, same dimensions. The 8000-Cycle listing is the one to choose if you want that longevity claim front and center in your purchase documentation.

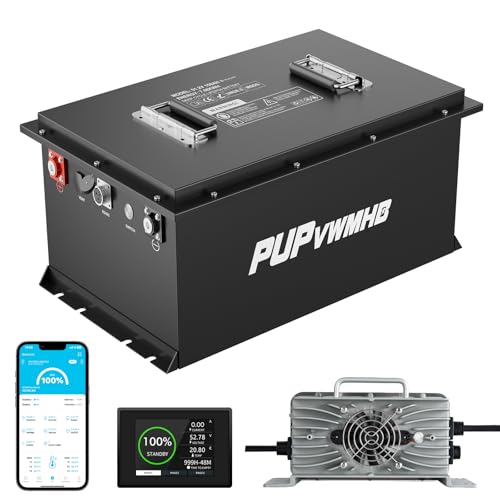

• 48V cart, heavy use or longer routes: The 48V 150Ah Golf Cart Metal Case (B0FLJHD91R) adds 50% more capacity (7.68kWh vs 5.12kWh), bumps range to roughly 70 miles, and uses a metal enclosure instead of ABS. It's 48 pounds heavier and 4.7 inches longer — measure your compartment first.
• 72V cart (Bad Boy Buggies and similar heavy-duty carts): The 72V 105Ah Golf Cart Kit (B0FLPRKYH7) — 7.728kWh, 14.72kW max output, 83.9V 15A charger included, 70-mile range estimate.

Building a Home Solar Storage System

The 48V 100Ah Server Rack (B0FSKT9J94) is in a completely different category from every other product in the lineup. It's a 3U rack-mount unit with Wi-Fi and Bluetooth monitoring, RS485/CAN/RS232 inverter communication, and built-in auto fire suppression that activates at 338°F. Up to 15 units can be connected in parallel for a maximum of 76.8kWh. It's compatible with Victron, Pylontech, Luxpower, Sol-Ark, DEYE, and GoodWe inverters.

This is not the right choice for an RV or a golf cart. It's for off-grid cabin builds, home backup systems, and solar installations where you want a rack-integrated solution that communicates directly with your inverter.

Who Should Look Elsewhere

PUPVWMHB doesn't have a 12V option above 330Ah in a single unit — builders who need more than that in one package will need to wire multiples in parallel. There's also no lithium starter battery in the lineup, no 36V option above 105Ah, and no self-heating variant in 24V or 48V configurations. If your cart or system requires a voltage not listed here — say, a 60V system — nothing in this lineup covers it.

The most common question about PUPVWMHB batteries isn't about specs — it's about whether the specs are real. Honestly, that's the right question to ask about any budget-tier LiFePO4 product. Here's what the community has actually documented.

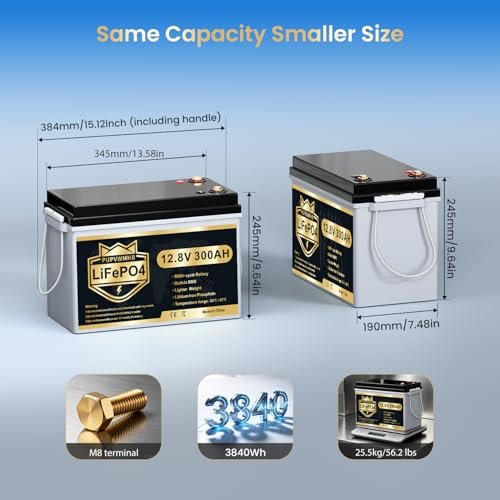

Field Testing on the 12V 300Ah Units

The clearest data comes from r/RVLiving, where a user tested two 12V 300Ah MINI units after 11 months of regular use. Both measured above the rated capacity: 312Ah and 314Ah respectively. That's not a rounding error — it's 4–5% over the stated spec, which puts PUPVWMHB in the same overdelivery territory that brands like LiTime and Epoch get credit for at higher price points.

A separate community thread on diysolarforum.com confirmed the 12V 100Ah MINI holds around 106–107Ah in real-world tests. The pattern is consistent: Grade A+ cells in these units appear to be rated conservatively, not inflated.

What DOD-Adjusted Cycle Life Actually Means

The 15,000-cycle headline claim gets used on multiple product listings. Here's what that number means in context — and what to expect at the DOD levels most people actually use.

Most RV and solar users cycle between 80–100% DOD in real life, which means the 6,000–4,000 cycle range is more representative than the 15,000 headline. That's still 11–16 years of daily cycling — a meaningful improvement over the 200–500 cycles you'd get from lead-acid. The golf cart units (36V, 48V, 72V) are separately rated at 8,000+ cycles at their standard use conditions, which reflects the 2C-capable A+ cells used in those configurations.

Construction Feedback and Early Production Notes

A YouTube reviewer who covered the 12V 100Ah MINI produced a follow-up video specifically about minor construction issues on early units. That video exists, which matters — it means the reviewer thought the battery's core performance was worth revisiting rather than dismissing outright. The issues noted were in the construction, not the cell performance. Units shipping currently appear to reflect updated production based on later reviews.

One documented instance from diysolarforum.com involved a user receiving a unit without the Bluetooth BMS — an exception, not a pattern, but worth knowing. If Bluetooth monitoring is critical to your setup, verify the BMS chip is present before completing setup. The app login friction is a separate, confirmed issue that affects account creation on some devices; the monitoring itself functions via guest access without signing in.

Capacity Retention After Cycling

PUPVWMHB's specifications state that cell capacity remains above 80% after 2,000 cycles — a standard LiFePO4 benchmark. That claim is consistent with what A+ grade LiFePO4 cells typically deliver, and the real-world field reports from users at 11 months of use show no measurable degradation yet. Longer-term independent data past two years isn't widely available for this specific brand, which is worth acknowledging. The community track record so far is positive, but PUPVWMHB doesn't yet have the multi-year public data trail that more established brands carry.

PUPVWMHB LiFePO4 (lithium iron phosphate) batteries carry CE, ROHS, MSDS, and UN38.3 certifications across the 12V lineup, with additional FCC certification on Bluetooth-equipped models. These aren't marketing badges — they represent specific tested standards that matter for the ways most buyers use these batteries.

What Each Certification Covers

• CE: European Conformity mark — confirms the product meets EU safety, health, and environmental requirements. Required for legal sale in the EU; its presence on a product sold in the US indicates the manufacturer has met at least that minimum standard for electrical safety and electromagnetic compatibility.
• ROHS: Restriction of Hazardous Substances — confirms the battery doesn't contain lead, mercury, cadmium, or other restricted heavy metals. Relevant for buyers concerned about disposal and environmental safety.
• MSDS (Material Safety Data Sheet): Formal documentation of the battery's chemical composition, handling requirements, and emergency response information. Required for shipping compliance — batteries without MSDS documentation can't legally be shipped by major carriers.
• UN38.3: The most technically significant certification here. This is the United Nations test standard for lithium battery transport, covering altitude simulation, thermal testing, vibration, shock, external short circuit, impact/crush, overcharge, and forced discharge. A battery that passes UN38.3 has survived a defined abuse protocol — not just manufacturer testing.
• FCC (on Bluetooth models): Confirms the Bluetooth radio component meets US emissions standards and won't interfere with other devices.

LiFePO4 Chemistry and Thermal Safety

This is where LiFePO4 genuinely differs from the NMC lithium-ion chemistry in phones and laptops. NMC cells can enter thermal runaway — a self-sustaining reaction where heat accelerates cell breakdown, which produces more heat, which accelerates cell breakdown further. LiFePO4 chemistry is thermally stable because the phosphate bond in the cathode is much harder to break. The cells don't spontaneously combust when overcharged the way NMC cells can.

Specifically: LiFePO4 cells won't decompose until temperatures exceed roughly 500°F (260°C). Under normal fault conditions — overcharge, short circuit, physical impact — LiFePO4 cells typically swell rather than combust. That's why you can mount them in any orientation without spill risk and use them in enclosed spaces that would be inappropriate for lead-acid (which off-gases hydrogen during charging).

This doesn't mean they're indestructible. Physical damage, chronic overcharging above the BMS protection threshold, or charging below the low-temperature cutoff can all reduce cell life. But the thermal failure mode for LiFePO4 is categorically different — and safer — than NMC lithium-ion.

BMS Fault Coverage

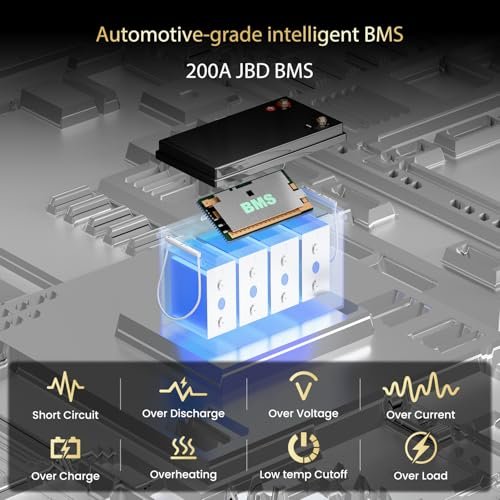

Every PUPVWMHB battery ships with a built-in BMS that provides protection against five fault categories:

• Overcharge — cuts off charging above the maximum protection voltage (14.6V on 12V models)
• Over-discharge — cuts off discharge when voltage drops to the terminal threshold (10V on 12V models)
• Overcurrent — cuts off when discharge current exceeds the continuous BMS rating
• Short circuit — disconnects immediately on a detected short
• Temperature — stops charging below 32°F (0°C) to prevent lithium plating; stops charging above 158°F (70°C) on the IP65 models

The golf cart variants carry a 200A continuous BMS rated for 400A over 35 seconds and 1,000A for 1–3 seconds — the peak tolerance that covers motor startup surge on Yamaha, EZGO, and Club Car controllers.

The Server Rack's Auto Fire Suppression

The 48V 100Ah Server Rack (B0FSKT9J94) carries one safety feature not found in any other product in the lineup: a built-in fire suppression device that activates automatically when internal temperature exceeds 170°C (338°F). It's designed to interrupt thermal runaway within milliseconds. The unit also includes a 125A circuit breaker and dual switches — layered fault protection that's appropriate for a product being installed inside a home or utility room.

This matters because home solar storage batteries live in spaces where a fire has real consequences. The auto suppression is a meaningful differentiator for that specific application — not a feature you need in an RV or golf cart, but one worth noting for the server rack buyer.

PUPVWMHB covers every battery in the lineup with a 5-year warranty. Support runs through the Amazon seller channel — contact the PUPVWMHB store directly via Amazon messaging. There is no US call center. That's the honest picture, and knowing it upfront prevents the frustration that comes from expecting phone support and not finding it.

What the Warranty Covers

The 5-year warranty covers repair and replacement. The product listings state "special 5-year after-sales service is provided, covering repair and replacement services" — which is more explicit coverage than many competing budget-tier brands offer. A documented instance from community research shows a BMS-related question receiving a seller response within 15 minutes via Amazon messaging, which suggests active monitoring of the inbox rather than batch responses.

What the warranty doesn't cover explicitly: physical damage from improper installation, damage from charging below 32°F on non-self-heating models, or mismatched charger voltages. The warranty is on the product as shipped — not on a product operated outside its specified parameters. Standard stuff, but worth understanding before you assume it covers everything.

How to Reach Support

The seller contact method is Amazon's messaging system. Navigate to your order, select the PUPVWMHB listing, and use the "Ask a question" or "Contact seller" option. The brand claims 24-hour response times and their documented track record supports that — response within a business day is consistent with what community members have reported. Some users have reported sub-hour responses on technical questions.

If you have a Bluetooth connectivity issue specifically, the known workaround is to use the app in guest mode rather than creating a registered account. The monitoring functionality works; the account registration has been reported as finicky. That's a known friction point — not a hardware defect.

Replacement Parts and Ongoing Service

PUPVWMHB doesn't appear to sell replacement BMS units or cells separately through their Amazon store. For a warranty claim involving a failed unit, the most practical path is replacement rather than repair. Given that these batteries are sold through Amazon, the return and replacement process follows Amazon's standard seller dispute framework — which provides an additional layer of buyer protection on top of the manufacturer warranty during the return window.

For builds where long-term serviceability is critical — say, a full off-grid cabin system you'll maintain for 15+ years — this is worth factoring in. The server rack and golf cart products in particular are large enough investments that the support channel deserves scrutiny before purchase.

Honest Context on Budget-Tier LiFePO4 Support

PUPVWMHB isn't Battle Born or Epoch, which have US-based support teams, published service centers, and long-established community relationships. The support infrastructure here is Amazon-mediated, seller-based, and documented to be responsive — but it's not the same as calling a toll-free number and speaking to a dedicated technician. If you need that level of support, the price premium for those brands is partly what you're paying for. If Amazon-channel support with a 5-year warranty is sufficient, PUPVWMHB's track record on responsiveness holds up to what's been documented.

PUPVWMHB 12V batteries support both series and parallel expansion, but the limits are specific and non-negotiable. Exceeding them risks BMS conflicts, capacity imbalance, and in worst cases, cell damage. Here's what's verified from product documentation.

12V Series and Parallel Limits

Series connection (positive to negative in sequence) increases voltage while keeping Ah the same. Parallel connection (positive to positive, negative to negative) increases Ah while keeping voltage at 12V.

• Max series: 4 identical batteries → 48V (51.2V nominal), same Ah capacity as a single unit
• Max parallel: 4 identical batteries → 12V, 4× the Ah capacity (e.g., 4× 300Ah = 1,200Ah / 15.36kWh)
• Max combined (4S4P): 16 batteries → 48V 1,200Ah / 61.44kWh maximum

The 12V 170Ah Compact (B0DWL4Q5BD) follows the same rules: up to 4S for 48V 170Ah, or up to 4P for 12V 680Ah.

Pre-Connection Requirements

Before connecting any PUPVWMHB batteries in series or parallel, three conditions must be met:

1. Same capacity (Ah) — don't mix a 300Ah unit with a 330Ah unit
2. Same brand — mixing with other manufacturers' batteries is not supported
3. All units fully charged individually before connecting — each battery must read above 13.4V at rest before the first series/parallel connection

Skipping the pre-charge step is the most common installation error. Connecting batteries at different states of charge forces the BMS to equalize them immediately, which stresses cells and can trigger protection shutdowns. Charge each unit separately to full before the first wiring.

24V Configuration Limits

The 24V 100Ah MINI Trolling (B0F8BFRW26) and the 24V 100Ah Compact (B0F379ZBKP) both support 2S4P configuration: up to 2 in series (48V) and up to 4 in parallel, for a maximum of 48V 400Ah / 20.48kWh. The same pre-connection requirements apply — same capacity, same brand, fully charged before connecting.

Golf Cart Batteries Are Single-Unit Configurations

The 36V, 48V, and 72V golf cart batteries are not designed for series or parallel expansion. Each unit already contains the correct number of cells to produce its rated system voltage — the 36V 105Ah pack uses 12 LiFePO4 cells; the 48V 100Ah packs use 16. These are complete replacement packs, not cells to be combined. Installing two 36V units in series would produce 72V and damage the controller. Install one pack per cart, at the voltage your controller is rated for.

Server Rack Parallel Expansion

The 48V 100Ah Server Rack (B0FSKT9J94) supports up to 15 units in parallel. At 5,120Wh per unit, maximum system capacity is 76.8kWh — enough for most residential solar storage needs. Parallel connection uses the dual terminals on each unit; the RS485/CAN communication bus ensures all units are managed as a coordinated bank by compatible inverters (Victron, Pylontech, Luxpower, Sol-Ark, DEYE, GoodWe).

The rack-mount kit is built into the unit — no separate 3U rack hardware to purchase.

A Note on Mixed-State Connections

This is worth repeating because it trips people up: never connect a battery that's been discharged to 40% SOC (state of charge) with a battery sitting at 90% SOC. The voltage differential causes high inrush current that can trip BMS protection on both units simultaneously. The fix isn't complicated — just charge everything to full first. But if you skip it, you'll end up diagnosing what looks like a defective unit when the issue is purely a connection sequence error.

Every standard PUPVWMHB LiFePO4 battery stops accepting charge when ambient temperature drops below 32°F (0°C). This is a designed safety feature, not a defect — charging LiFePO4 chemistry below freezing causes irreversible lithium plating on the anode, which permanently reduces capacity. The BMS enforces the cutoff to prevent exactly that damage.

Discharging is a different story. All models can discharge down to -4°F (-20°C), so running loads in cold weather isn't the problem — only charging is restricted.

What Happens at the 32°F Charging Cutoff

When the battery temperature reaches 32°F, the BMS disconnects the charge circuit. The battery appears to stop accepting power from the charger. This can look like a dead battery or a fault condition if you're not expecting it — it's neither. Bring the battery above 32°F and the BMS will reconnect automatically. For most RV owners, this means storing the battery inside or in a heated compartment during charging in winter months.

The high-temperature charging cutoff on the IP65 models is 158°F (70°C). Both cutoffs — low and high — are handled automatically without any user input required.

The Self-Heating Model — When It Matters

The 12V 330Ah Self-Heating (B0FY5BZCRX) is the only PUPVWMHB battery that can charge in sub-freezing temperatures. Here's exactly how it works:

• Temperature range that activates heating: -4°F to 32°F (-20°C to 0°C)
• Trigger condition: battery connected to a charger with current above 7A
• Heating source: the charger powers the heating element — the battery's own stored energy is not consumed for heating
• Heating stops at: 37.4°F (3°C), at which point normal charging resumes

The 7A minimum charging current is a real requirement. A solar panel putting out 5A on a cloudy winter day won't activate the heater. If you're in a cold climate and relying on low-output solar in winter, plan for a dedicated charger rather than assuming the panel will trigger heating.

One other useful note from product documentation: the self-heating 330Ah unit is fully compatible with the standard non-heating 330Ah version in series or parallel. You can mix them in a multi-battery bank.

Seasonal Storage Guidance

LiFePO4 self-discharge is around 2–3% per month — far lower than lead-acid (5–15% per month). A PUPVWMHB battery stored fully charged in a cool, dry location in October should still hold a strong charge when you reconnect it in spring. A few practical notes:

• Store at 50–80% SOC if long-term storage exceeds 6 months — not fully charged, not fully discharged
• Storage temperature range per product specs: -4°F to 113°F (-20°C to 45°C) on most models
• If a battery has been stored discharged and doesn't respond to a charger, see the FAQ section below for recovery steps
• Golf cart owners storing through winter: disconnect the battery terminals to eliminate any parasitic draw from the cart's electronics

Who Needs the Self-Heating Model

Not everyone does. If your RV is stored in a heated garage or you're a full-time southerner, the standard models are fine. The self-heating model is specifically for people who charge outdoors in northern winters, camp in temperatures regularly below 32°F, or run off-grid systems in high-altitude or northern climates where winter charging is unavoidable. It costs more and weighs the same as the standard 330Ah — the premium is purely for the heating element.

Trolling motor users have a specific problem with standard lithium batteries: motor startup creates a current spike that trips the BMS, cuts power for a few seconds, and restarts. It's not dangerous, but it's annoying — and in a tournament situation, it's unacceptable. PUPVWMHB's 24V MINI and golf cart-series batteries address this differently than the standard 12V units, and understanding the distinction matters before you buy.

The 24V MINI for Trolling Motor Use

The 24V 100Ah MINI Trolling (B0F8BFRW26) is the purpose-built option here. Its BMS is specifically rated for 300A over 1 second — the inrush current profile of a large trolling motor at startup. After the startup surge passes, the motor drops to its normal running current (typically 40–60A at medium speed on an 80 lb thrust motor), and the 100A continuous BMS handles that without issue.

The auto-recovery feature matters almost as much as the peak rating. If the BMS does trip on an unusually high surge, it recovers automatically in 30 seconds. You don't need to manually reset anything or reconnect cables — power just comes back. That's a meaningful difference from batteries that require manual intervention after an overload event.

At 41 lbs and 2,560Wh, the 24V MINI replaces two 12V 100Ah batteries with a single unit — fewer connections, no balancing concerns, and weight centered differently in the bow than two separate boxes.

Runtime Estimates for Common Trolling Motor Setups

These are calculated estimates based on rated capacity and typical motor draw — real-world runtime will vary with speed setting, current, wind, and load.

Running a fish finder (3–5A) and a livewell pump (5–8A) alongside the motor will reduce these figures by roughly 15–20% at medium motor speeds. The 2,560Wh capacity is usable at 100% DOD — unlike lead-acid, where you'd lose half that to protect the battery.

12V Marine Users and the BMS Peak Ratings

For 12V trolling motor setups (less common on larger boats, more common on kayaks and small aluminum hulls), the 12V 300Ah MINI IP65 (B0GWD32D8Z) and the 12V 320Ah IP65 (B0FFSJ73VN) both carry a 600A peak discharge over 3–5 seconds. That covers startup surge on 12V motors up to around 55 lb thrust. The standard 12V 300Ah Bluetooth (B0DL9MNRDN) is rated for 2C peak (600A on a 300Ah unit) within 3–5 seconds — same effective peak tolerance.

What changes for marine users is mounting. All PUPVWMHB batteries contain no liquid acid, so they can be mounted in any orientation without spill risk. Bow mounting, under-seat mounting, or on-side in a storage compartment — none of those present a safety issue that a lead-acid installation would raise.

Golf Cart BMS Peak Ratings in Context

The 36V, 48V, and 72V golf cart packs carry a 200A continuous BMS with 400A for 35 seconds and 1,000A for 1–3 seconds. That 1,000A peak exists specifically for the motor startup surge on high-torque golf cart controllers — a Club Car or EZGO motor pulling hard on a steep incline can spike to 600–800A for a fraction of a second at the battery terminals. The 1,000A peak tolerance means the BMS won't trip on that event. The 35-second 400A rating covers sustained hard acceleration on steep terrain before the system settles into cruising draw.

For trolling motor users who are considering the 36V golf cart pack for use in a large pontoon or similar vessel: technically the BMS ratings are compatible, but the 36V pack is significantly heavier (70 lbs) and physically larger than the 24V MINI. Unless you specifically need 36V system voltage, the 24V MINI is the better fit for marine trolling applications.
